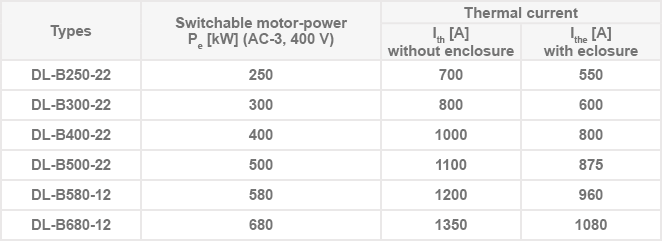

DL-B contactors 250…680 kW
DL-B250…DL-B680

Accessories

auxiliary contact-block with two or four contacts
mechanical interlocks
terminal cover (DL-B250…DL-B500)
HB 7 thermal relay 240…800 A (to DL-B250…DL-B500)
Degree of protection: IP 20

Control

AC (24…600 V 50/60 Hz) coils, or DC (24…220 V) coils
AC or DC main current paths

Relevant standard: EN 60947-4-1
The detailed technical description of the product family is in the catalogue:
“NEW CONTACTORS AND MOTORSTARTERS“.
For further information contact with product manager György Lieli
lieli.gyorgy@ganzkk.hu
or engineer Lajos Holczbauer
holczbauer.lajos@ganzkk.hu
