Modular (installation) contactors IK-B

Note: The installation contactors are suitable for switching single-phase or three-phase loads (e.g. heat storage ovens, lamps, heat pumps, air-conditioning equipment,ventilators, electric motors, etc. They have a silent operation.

Type structure

IK-Bxx-yy-zzz
xx:  Rated current [A] yy:  Contacts: 10: NO, 01: NС
zzz: Control voltage (24 V vagy 230 V)

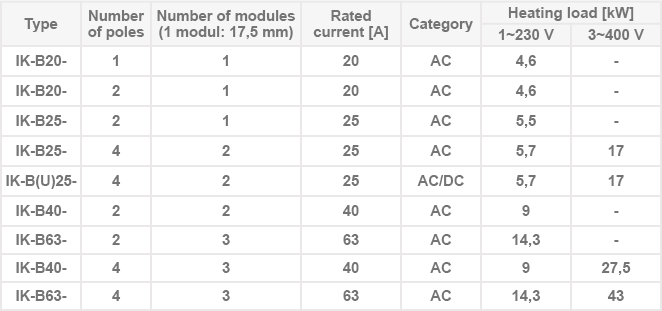

Type variants

Accessories

auxiliary contacts NO+NC
overvoltage protector and supressor unit
spacing piece
sealing cover
Degree of protection: IP 20

Relevant standard: EN 60947-4-1
The detailed technical description of the product family is in the catalogue:
NEW CONTACTORS AND MOTORSTARTERS“.
