DL-B contactors 4…18,5 kW
DL-B4-…DL-B18

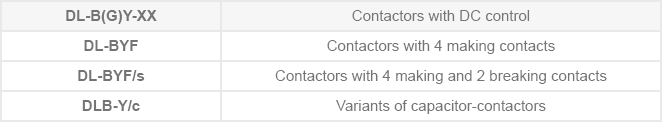

Type variants

Arrangements of contacts
and types of DC control

Note: The type-code of contactors consists the switchable motor power and after the hyphen the quantity of the built-in free usable normally open (NO) and normally closed (NC) auxiliary contacts. The Y refers type size.

Accessories

Auxiliary contact-block with two or four contacts
electronic timer on-delay
interface unit
indicator units for contactors
latch for contactors with NC auxiliary contacts
mechanical interlocks
suppressor units
marking system
HB1 thermal relay: 0,12…32 A (to DL-B4…DL-B11-;  HB2 thermal relay: 10…42 A (to DL-B15, DL-B18)

Control

AC (12…600 V 50/60 Hz) coils, or DC (24…220 V) coils
AC or DC main current paths
Degree of protection: IP20

Relevant standard: EN 60947-4-1
The detailed technical description of the product family is in the catalogue:
NEW CONTACTORS AND MOTORSTARTERS“.
